多管旋流分離器可以去除氣體中液體和固體雜質顆粒。

Multi-cyclone separator is designed to remove liquid and solid impurity particles in gas.

工作原理/ Working Principle

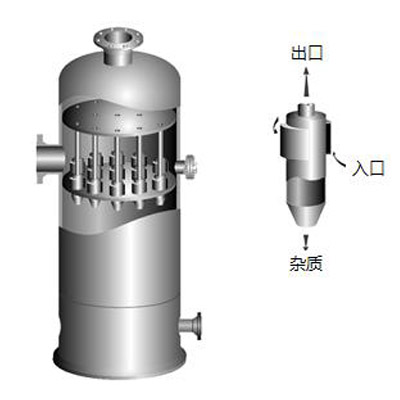

氣流從旋流管兩側入口進入兩塊曲面板和中心管構成的曲面流道，曲面流道強迫氣體旋轉產生離心力，將比較重的固體顆粒和液滴從氣流中甩到旋流管的曲面流道內壁。固體顆粒和液滴在氣體動能和重力的聯合作用下沿固液顆粒收集管內壁螺旋沉降。干凈的氣流則向上通過潔凈氣體流出管流出。

From the inlet of both sides of the cyclone tube, the vapor enters the curved channel composed of two curved panels and central tube. The curved channel forces the vapor to rotate to produce centrifugal force, and the heavier solid particles and droplets are thrown from the vapor flow to the inner wall of the curved channel of the cyclone tube. Under the combined action of vapor kinetic energy and gravity, solid particles and liquid droplets spiral along the inner wall of the solid-liquid particle collection pipe. The clean air flows upward through the clean gas outflow tube.

旋流管分離器不含運動部件，氣流依靠進料壓力的推動流經旋流管，不需要外部動力。

The cyclone separator has no moving parts, and the vapor flows through the cyclone tube pushed by feed pressure without external power.



結構特點/Characters

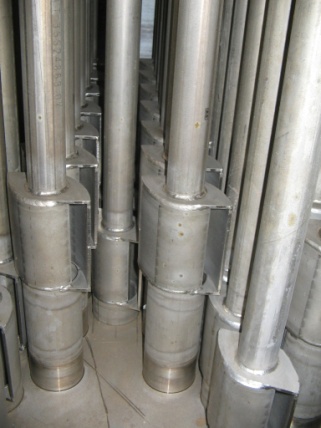

n 旋流管是用管件和冷軋鋼板經曲面沖模成型后焊接而成，所以內壁表面粗糙度小，離心曲線光滑，冷軋板材密度高，耐沖蝕抗腐蝕。

The cyclone tube is welded with pipe and cold-rolled steel plate by curved surface mould forming, so the inner surface roughness is small, the centrifugal curve is smooth, the  cold-rolled sheet has high density, erosion resistance and corrosion resistance.

n 采用堆疊式設計結構，可縮小殼體尺寸，降低投資成本。

The stacked cyclone tubes structure can reduce the shell size and the investment cost.

n 可采用可拆卸式結構或焊接式結構。

Removable structure or welded structure can be designed.


性能保證/Performance Guarantee

n 100%去除≥8μm的液體，100%去除≥5μm的固體顆粒

100% removal of liquid droplets 8 micron or larger, 100% removal of solid particles 5 micron or larger.

n 壓降<10 kPa或更小

Pressure<10 kPa or lesser

應用領域/Applications

n 加氫裝置循環氫脫液、低分氣脫液

Dehydrogenation of circulating hydrogen and

offgas dehydration

n 重整、催化等裝置干氣脫液

Dry gas dehydration

of reforming and catalytic units

n 工藝氣體氣固、氣液分離

Solid and liquid impurity

separation from process gas

n 天然氣長輸管線

Natural gas pipeline

n 氣體管線洗滌器、傳輸站壓縮機保護

Gas pipeline scrubber and transmission station compressor protection
