LC系列液體聚結器用來從汽油、煤油、柴油或其它液態烴類有機連續相中分離不相容的水、胺液、堿液等無機分散相液滴。

LCseries liquid coalescer used from gasoline, kerosene, diesel oil or otherliquid hydrocarbon organic continuous phase separation of incompatible amineliquid, water, alkali and other inorganic disperse phase droplet。

原理描述 Principle description

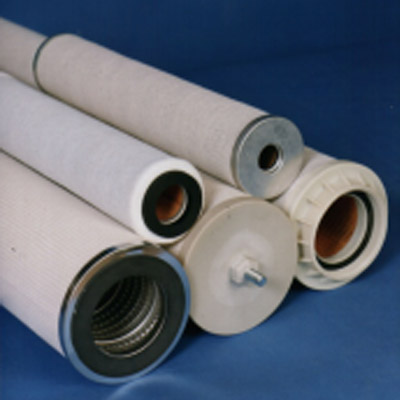

LC系列液體聚結器內部裝有兩種專門針對烴類介質脫水的濾芯——聚結濾芯和分離濾芯，當介質流經其內部需經過過濾、聚結、沉降、分離四個過程，從而實現脫掉介質中水分、堿液及溶于水的有機酸鹽等。

LC series liquid coalescer inside two for hydrocarbon medium dehydration filter - filter coalescence and separation filter, when the medium flows through the internal through filtration, coalescence, sedimentation, separation of the four processes, in order to achieve off the medium water, alkali and water soluble organic acid salt。

介質首先從內向外流經聚結濾芯，該濾芯具有過濾、破乳、聚結三重功效，有良好的親水性。聚結濾芯最內層的高精度過濾層，有效攔截介質中的顆粒雜質，尤其是攔截對穩定乳化狀態起明顯作用的氧化鐵、硫化鐵等雜質，有利于后續破乳及聚結功能。經過過濾以后的介質隨后進入聚結濾芯的破乳聚結層。破乳聚結層中的特殊材料對介質進行破乳，然后將介質中微小的游離水聚結出來，并在其表面凝結成大水珠。大水珠靠自身重力沉降到集水槽，尺寸較小的水珠會隨介質一起流向分離濾芯。

First of all from within the medium outflowcoalescence filter, the filter can filter, demulsification, coalescence ofthree effects, have good hydrophilicity. High precision filter layer is theinnermost layer of the coalescence filter, effectively blocking the particleimpurities in the medium, especially with the iron oxide to nterceptsignificantly stable emulsion state per iron sulfide. Other impurities, isconducive to the subsequent demulsification and coalescence. After filteringafter the media then entered the coalescing filter element layer. Thecoalescence demulsification of demulsification poly special materials in ajunction layer of demulsification of medium, then the free water small mediumcoalescence, and condensed into large drops of water on the surface of largedrops of water. By their own gravity settling into the water tank size Smalldrops of water will flow together with medium separation filter。

       分離濾芯是由特殊材料制成，具有良好的憎水性能。介質從外向內流經分離濾芯，分離濾芯有效的憎水性只讓連續相介質通過，分散相被完全有效地?cái)r截在濾芯外面，而再次凝聚成大水珠沉降，從而進一步分離掉水分，確保很高的分離效率。

Separation filter is made of special material, has excellent hydrophobic character. Medium from the outside through the separation filter, filter separation hydrophobic effective only through continuous phase medium, the dispersed phase is completely effective in intercepting filter outside, and again condensed into large drops of water sedimentation, thus further separating out water, to ensure the separation high efficiency。

       LC系列液體聚結器根據不同液體的粘度、表面張力、pH值等方面的不同，聚結元件的材料可以是玻璃纖維、聚丙烯、聚酯、尼龍、褶狀纖維素或復合材料。

According to the different liquid viscosity, surface tension, pH value and so on, the liquid coalescence can be glass fiber, polypropylene, polyester, nylon, pleated cellulose or composite material

分離元件材料可以是聚四氟乙烯涂層網、有機硅處理的纖維材料及其它憎水性合成網。

LC系列液體聚結器根據結構形式分為：VLC立式液體聚結器和HLC臥式液體聚結器。

一般用于航空煤油的聚結器，有其特殊的制造標準和行業標準，通常又稱為過濾分離器。

航煤的過濾分離器分為：

 Thematerial of the separating element can be a polytetrafluoroethylene coatingnet, an organic silicon fiber material and other hydrophobic synthetic nets。According to thestructural form, the LC series liquid coalescing device is divided into VLCvertical liquid coalescence device and HLC horizontal liquid coalescence device。Generally used in the assembly of aviation kerosene,has its special manufacturing standards and industry standards, often referredto as the filter separatorThe coal air filter separator is divided into：

n S級過濾分離器（原A級過濾分離器）--用于煉廠航煤罐區入罐和出罐，配合預過濾器一同使用

     S filter (formerly a filter separator) for fuel tank into the refinery tank and a tank, with a pre filter.

n S-LD級過濾分離器（原B級過濾分離器）--用于中間航煤罐區入罐和出罐，配合預過濾器一同使用

     S-LD filter (Bfilter separator) in middle tank into the tank and fuel tank, with pre filter.

n S-LW級過濾分離器（原C級過濾分離器）--用于飛機加油過濾

    S-LW class filter separator (C filter separator) - for aircraft fuel filtration

性能保證 Performance guarantee

n 清潔壓降：<0.03MPa，最大工作壓降：0.1MPa，濾芯結構強度：>0.7MPa

Cleaning pressure drop: <0.03MPa, maximum working pressure drop: 0.1MPa, filter structure strength: >0.7MPa

n 用于航煤介質的過濾分離器，濾后燃料的潔凈度：

Filter separator for coal - based media, cleanliness of filtered fuel：

2  游離水含量   <10PPM

Free water content <10PPM

2  固體雜質含量 <0.26mg/L

Solid impurity content <0.26mg/L

2  纖維含量     <10根/L

Fiber content <10 root /L

應用領域 Application area

n 從汽油、柴油、煤油和噴氣燃料中清除水分

Remove water from gasoline, diesel, kerosene and jet fuel

n 初級、中間和最終碳?xì)浠衔锂a(chǎn)品的過濾及脫水

Filtration and dehydration of primary, intermediate and final hydrocarbon products

n 堿洗處理工藝過程后堿液的清除

Removal of alkali washing process after lye.

n 在催化、裂化工藝過程中介質的過濾及脫水，以防止催化劑中毒

In the process of catalytic cracking, filtration and dehydration of the medium to prevent catalyst poisoning

n 液化石油氣中水分及胺液的分離

Separation of water and amine in liquefied petroleum gas

n
其它烴類化工介質的過濾及脫水

Filtration and dehydration of other hydrocarbon chemical media
